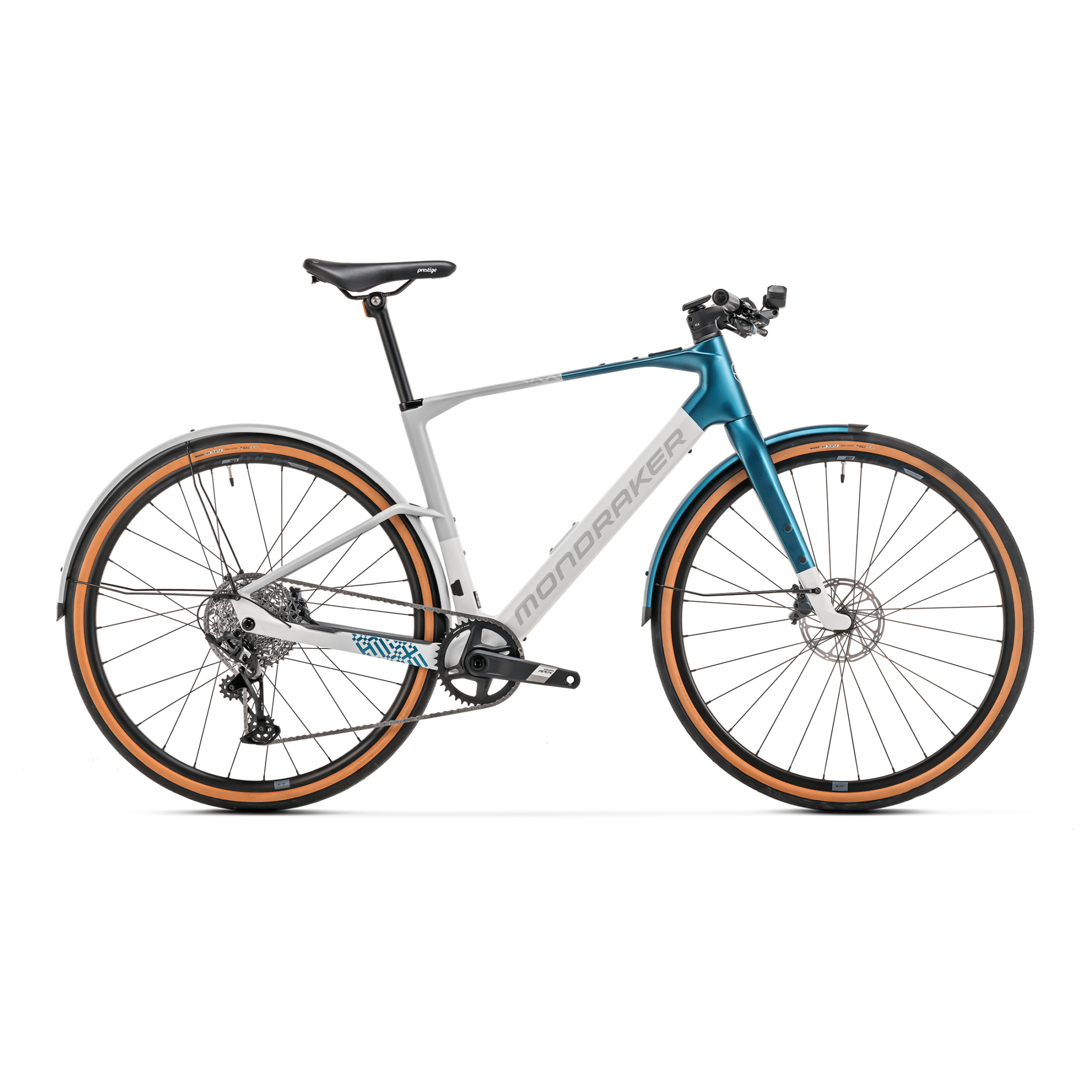

MONDRAKER DUSTY X
SPECIFICHE:
Frame
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm
Handlebar
MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips
Lizard Skins DSP 30.3
Seatpost
Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm
Saddle
Selle Royal Prestige 139mm
Front brake
Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level Silver, tools-free reach adjust, lever pivot bearings
Rims
MDK-XG1, 25mm internal width, tubeless ready, 28 spokes
Spokes
CN round stainless steel
Front hub
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear hub
Mahle X20 Drive Unit, HG freehub
Front tire
Maxxis Re-fuse 700×40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead
Rear tire
Maxxis Re-fuse 700×40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead
Crankset
SRAM Apex 1 Wide, size S: 170mm, size M: 172,5mm, size L: 172,5mm, size XL: 175mm.
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain
Sram Apex, 12s, Powerlock
Rear derrailleur
Sram Apex XPLR 12s
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Casette
Sram PG-1231 11-44, 12s
Derailleur hanger
Mondraker M076
Others
Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Optional external battery: Mahle e185Wh
Weight
14,1 kg
Display
Pulsar One Wireless/ DUO remote
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
